Dreams and Nightmares—the clay studio edition

Here’s a second installment in MCG’s Dreams and Nightmares miniseries. In this big photo essay, we look at all the fascinating things that can go right and wrong in the modeling phase of automotive design.





Years ago, a veteran clay sculptor at GM Styling gave MCG a valuable insight into the art, craft, and science of auto styling. “The automakers will spend millions moving piles of clay around just because it’s so difficult to get it right,” he said. “A pretty picture is just a pretty picture. It doesn’t mean it will be a pretty car.”

And there’s the challenge of the modeling stage: transforming a two-dimensional rendering on a thin piece of art board into an actual, three-dimensional object that dwells in the human world. In this part of the process, designers learn if their ideas will work in reality—functionally and aesthetically.

For the purposes of this story, we use the term clay (actually, the stuff is industrial plasticine) generically. A number of materials have been used over the years to produce working models: Wood and plaster were popular early in the industry (wood also serving as a die model) while later on, fiberglass and carbon fiber have proven out. And naturally, rapid prototyping and 3D printing are now entering and changing the game.

Clay models were traditionally built over wood lath armatures, while today plastic foam (which can be CNC-sculpted) often serves as the substructure. With a rudimentary frame and pair of mobile home-type axles underneath, the fullsize models are sometimes called “rollers” or “pushmobiles.” Facelifts and partial restyling jobs often are performed on existing vehicles with clay, foam, and plastic filler materials piled on to crate a working mock-up, which can then be digitized and reproduced.





Models can be any scale from 1:10 to full size, while the level of detail and realism can vary greatly as well. In the ’50s and ’60s, Motor City clay modelers became highly skilled at using DI-NOC plastic film to simulate paint, metal foil to approximate chrome, and realistic trim details  like badges and door handles to create clay models that were quite convincing—in the photography at least, if not totally in person.

In the slide show gallery below you will also find half-models, which are placed against a mirror to create the illusion of a complete vehicle. Some models might represent one proposal on one side and a completely different look on the opposite side, or two-door and four-door versions on one model. Much of the fascination in studying these models.is in seeing all the techniques and approaches at work.

Then there’s the primary question: How does she look? In this big gallery of over 50 vehicles, you will find some truly beautiful designs, along with some faces that only a mother could love. We tried to provide some genuine surprises, too. In any case, please enjoy looking them over.

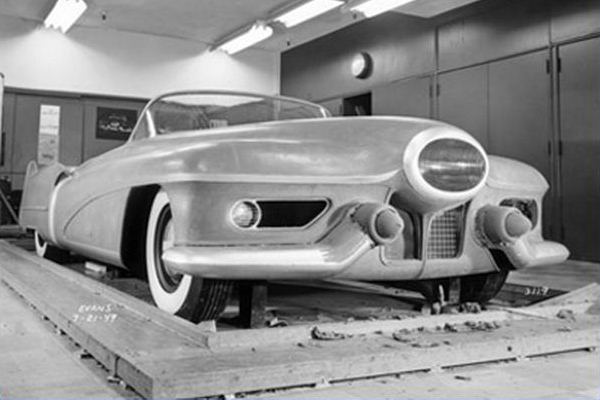

Buick LeSabre clay model

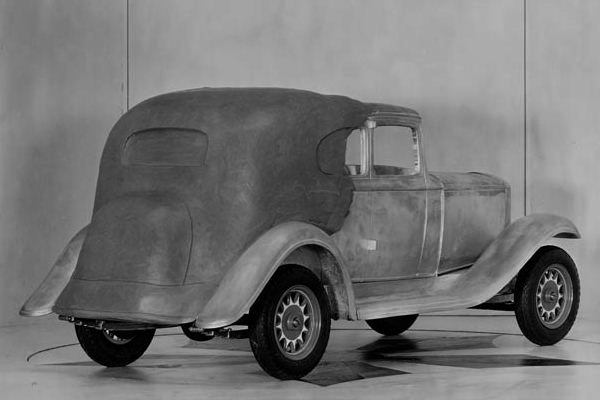

1932 Hudson clay model proposal

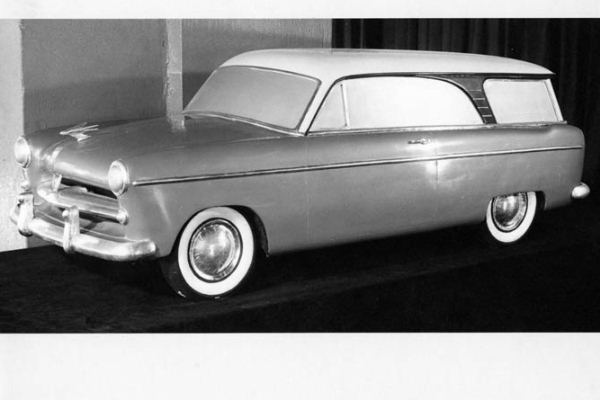

1953 Willys Aero prototype Station Wagon clay model Left Front

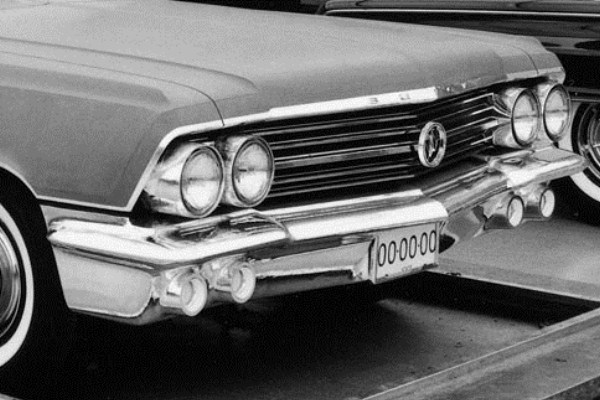

Buick clay proposal circa 1962

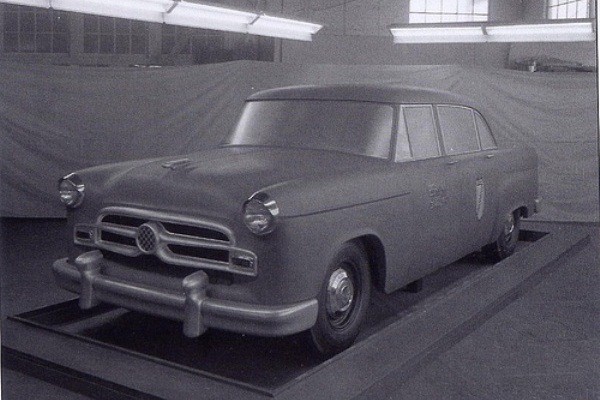

1955 Checker clay proposal

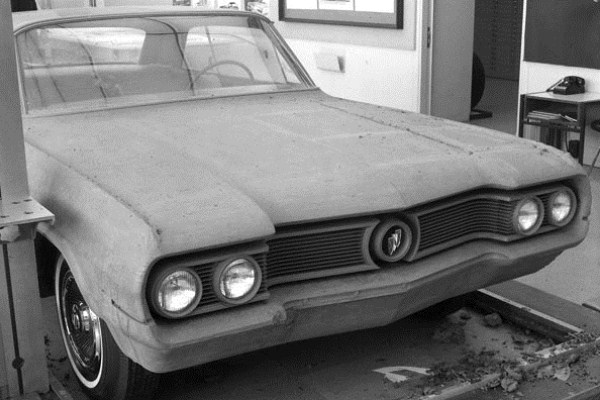

Buick clay proposal circa 1963

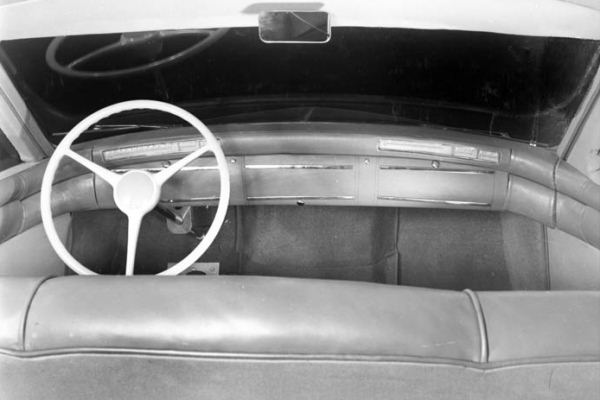

1946 Kaiser dash mockup

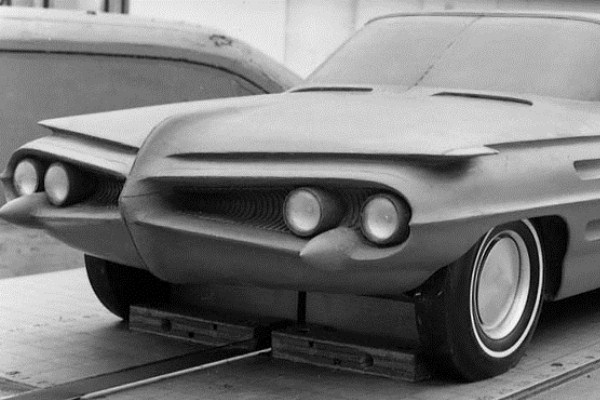

1959 Pontiac styling clay proposal

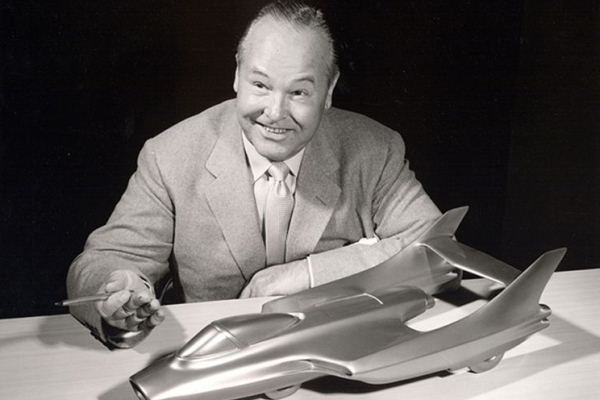

George Walker with clay concept 1955

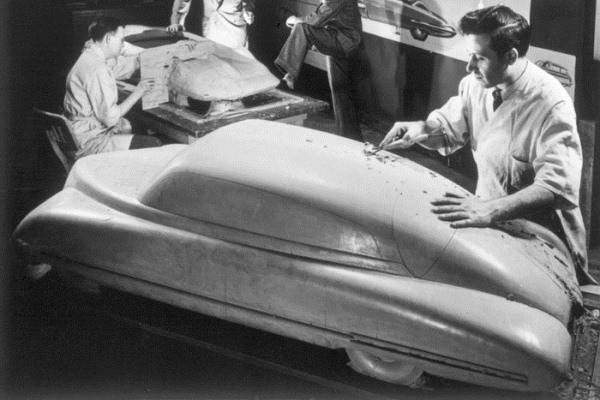

1948 General Motors clay modelers

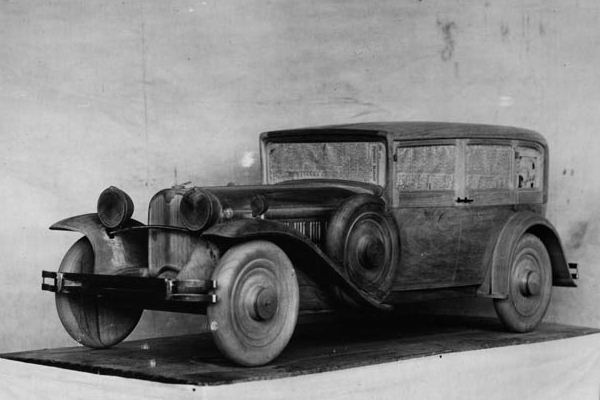

1929 Ruxton Sedan wood prototype model

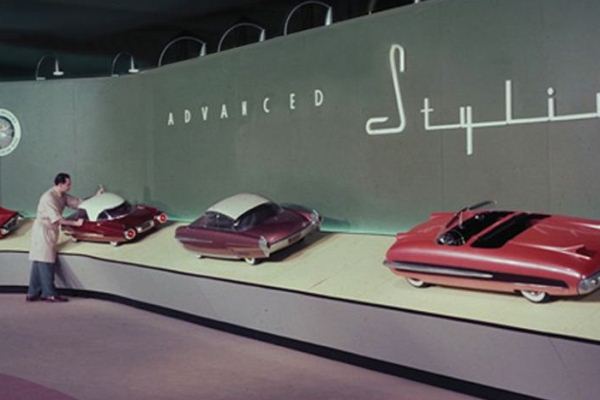

Ford Advanced Styling clay model display

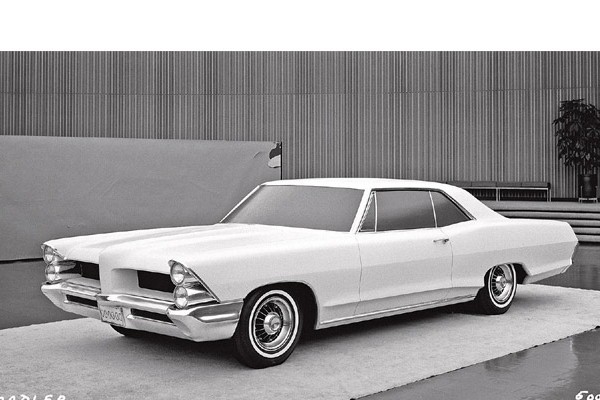

1965 Pontiac clay proposal 1963

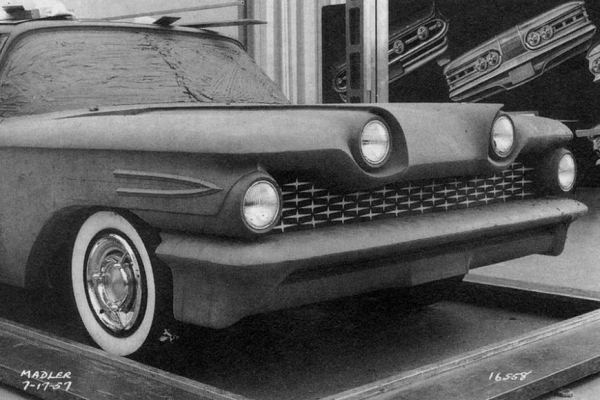

1959 Pontiac clay model July 1957

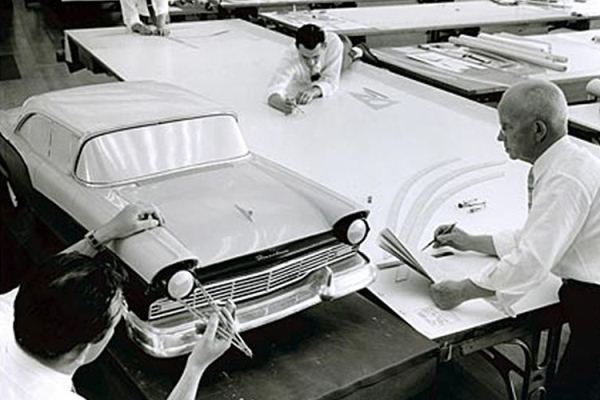

1957 Ford clay scale model

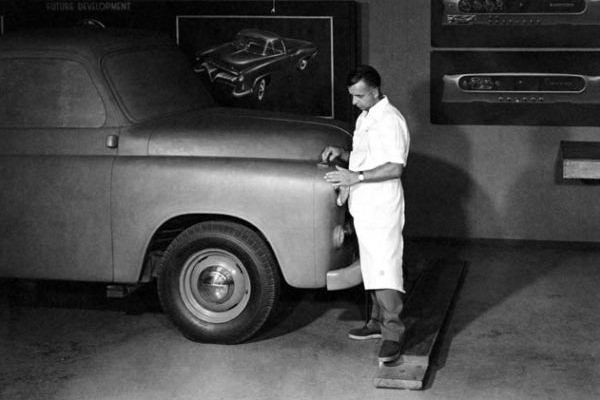

1954 Dodge C1 truck clay proposal

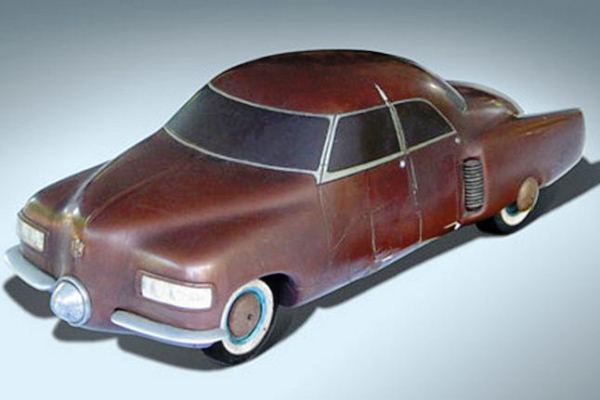

1940s Studebaker scale model

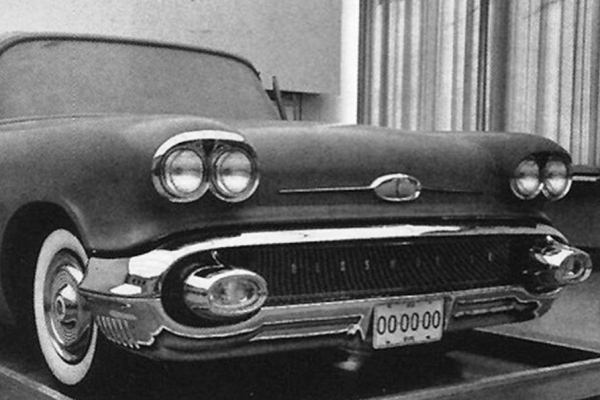

1958 Oldsmobile clay model prototype

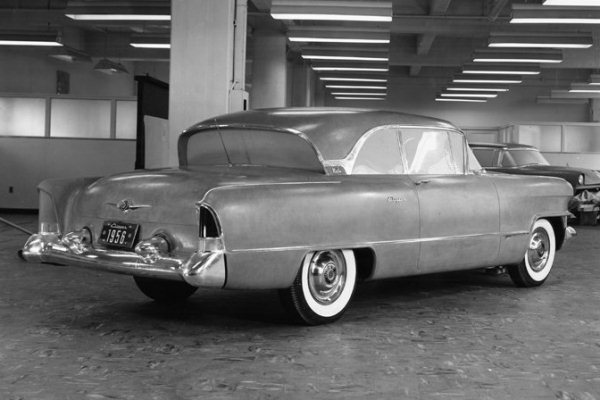

1956 Packard fullsize clay proposal

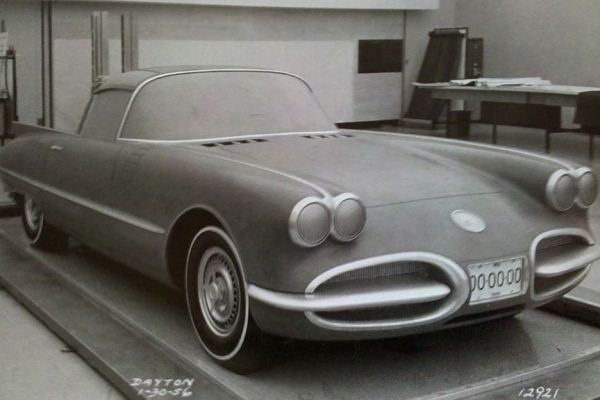

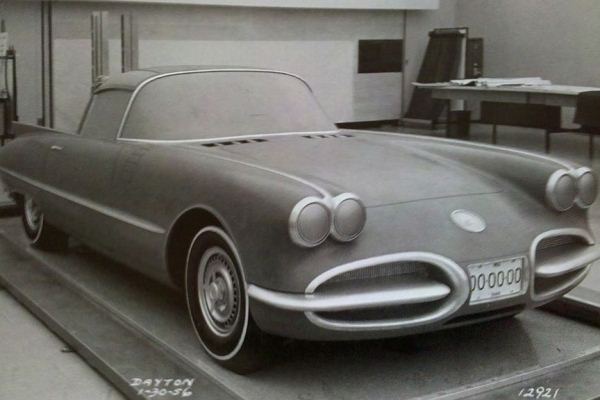

1958 Corvette clay proposal January 1956

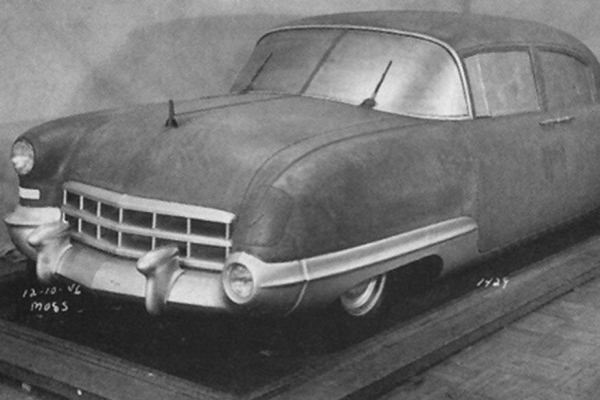

1946 Cadillac Interceptor fullsize clay proposal December 1946

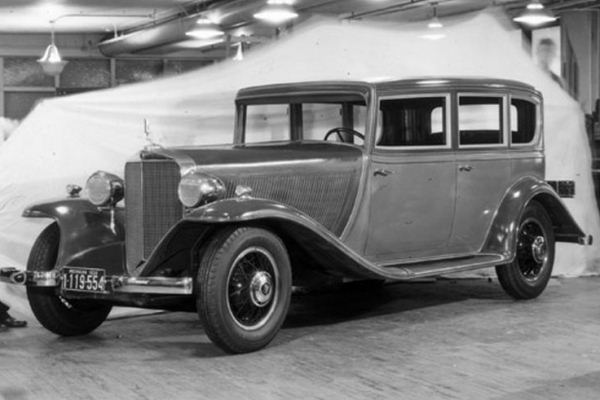

1929 Lasalle model

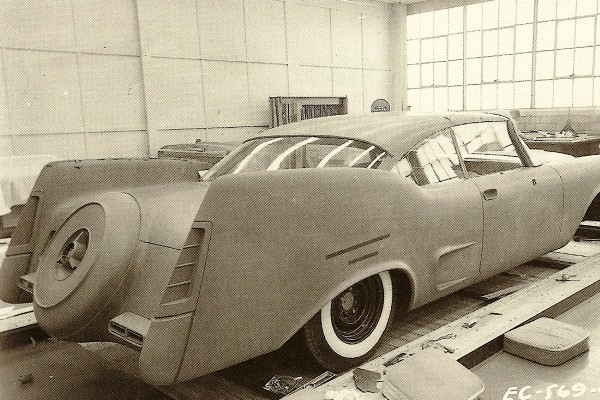

Chrysler 300 clay proposal 1957

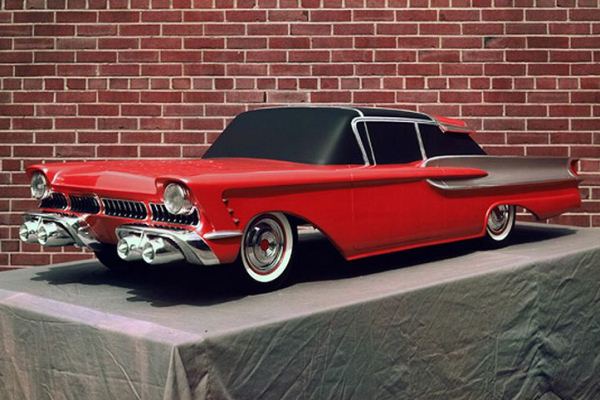

Mercury Turnpike Cruiser concept scale model

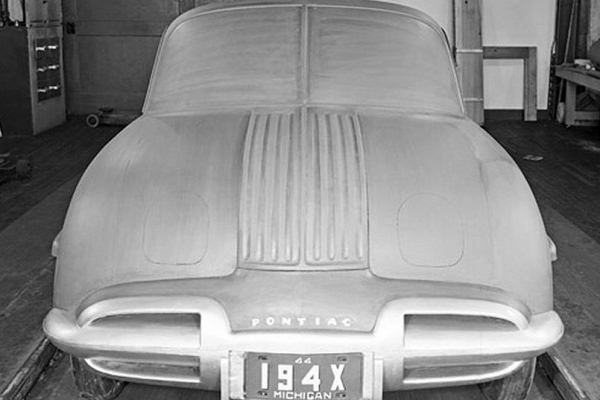

1944 Pontiac fullsize clay proposal

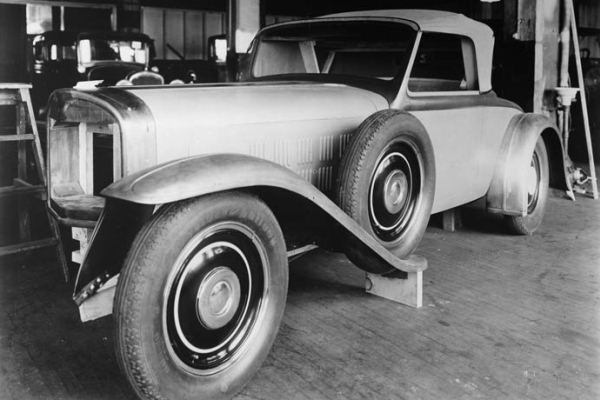

1929 Ruxton roadster fullsize mockup
1948 Pontiac fullsize clay proposal

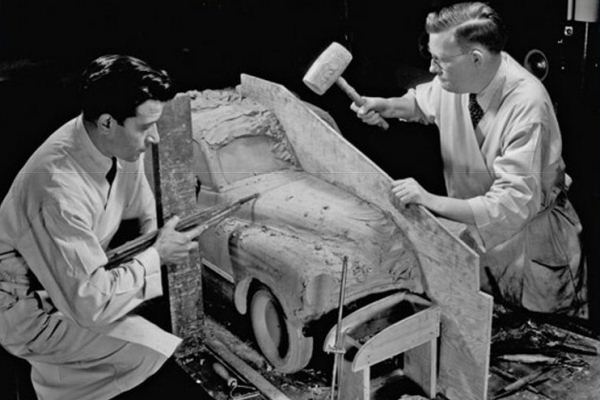

GM Styling 1946

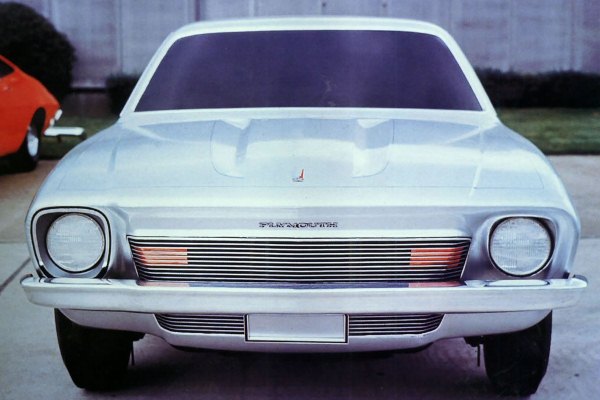

1970 Plymouth Valiant Styling Proposal

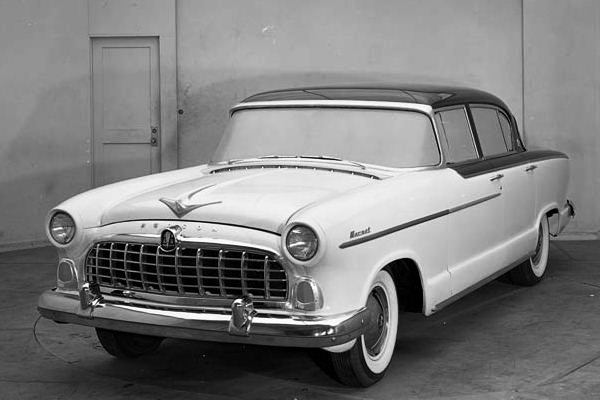

1955 Hudson Hornet clay proposal

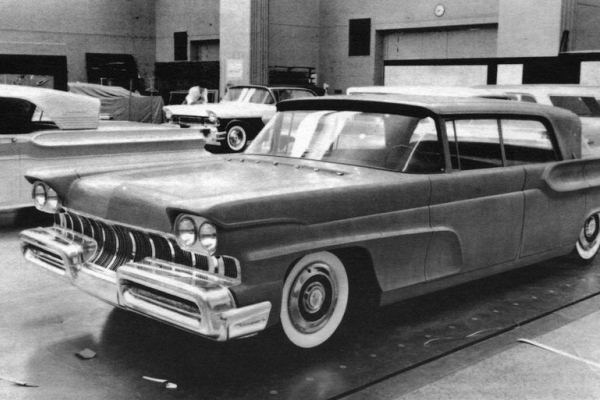

1957-58 Lincoln-Mercury clay proposal

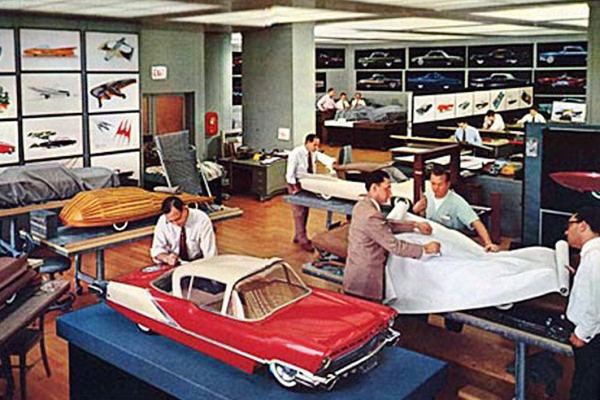

1952 Ford studio with Volcano idea car

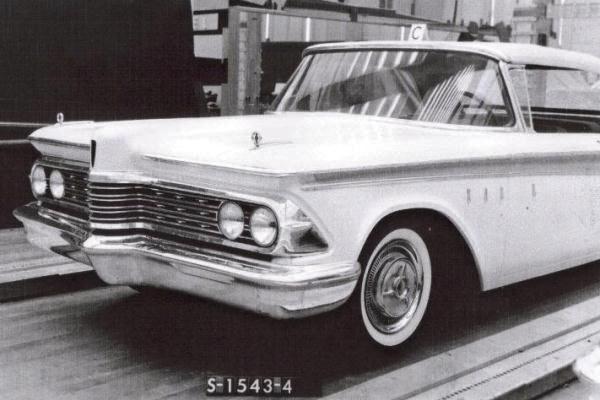

1959 Edsel clay proposal left front

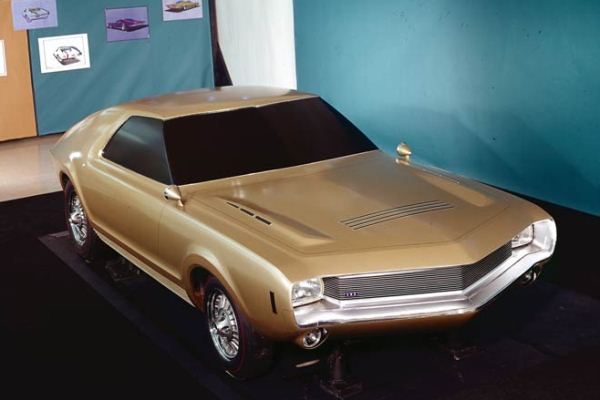

1966 AMC AMX proposal gold

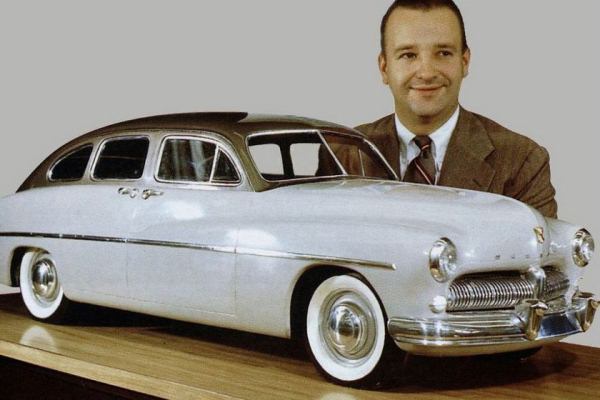

1949 Mercury clay model

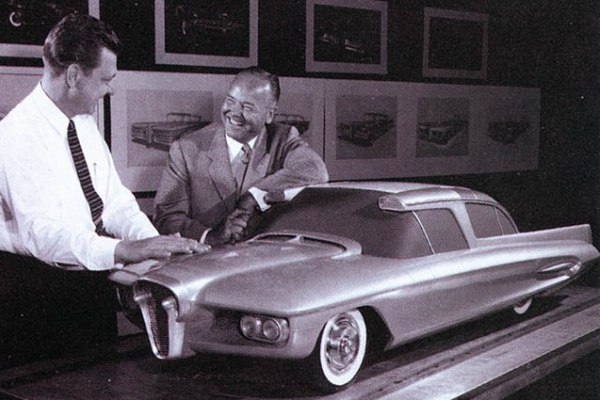

1958 Edsel E 196 X concept clay model with George Walker at right

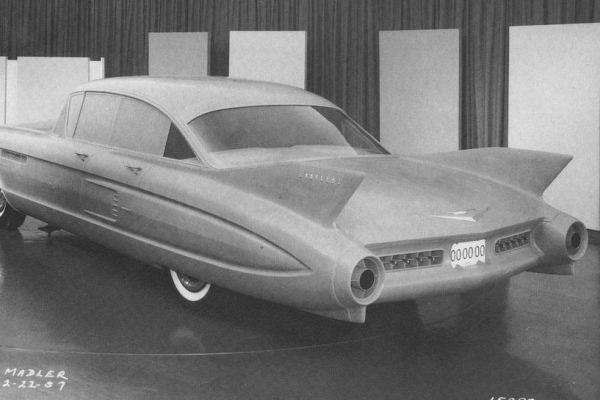

1959 Cadillac clay left rear 2-1957

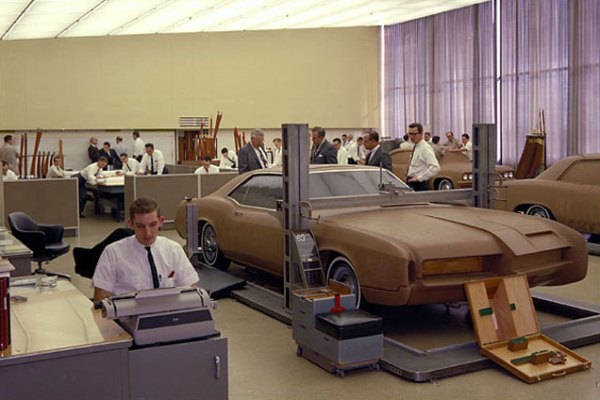

1966 Buick Riviera clay proposal

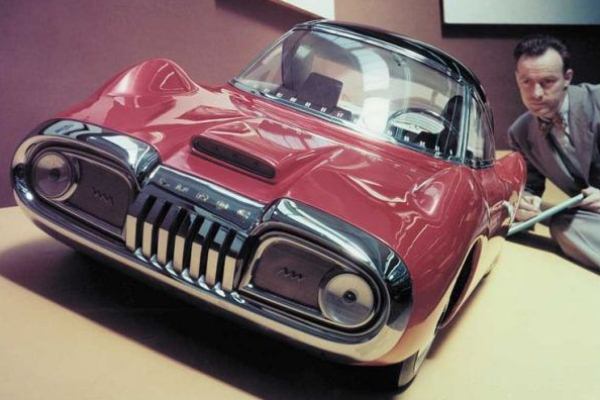

1950 Ford Muroc clay model

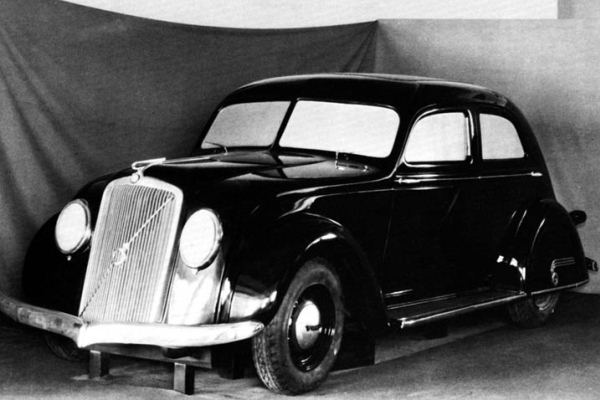

1934 Volvo PV36 wood model
Bill Mitchell with Firebird models

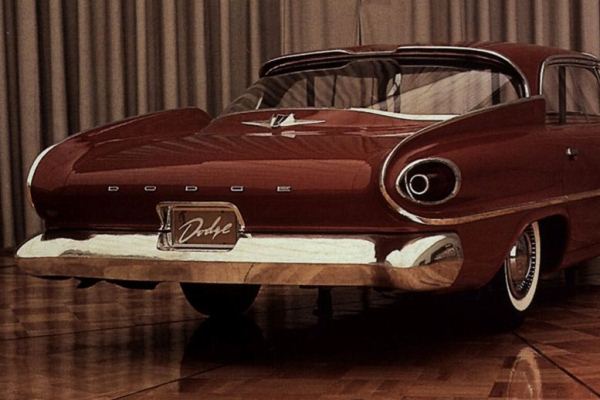

1961 Dodge Dart clay proposal c1958

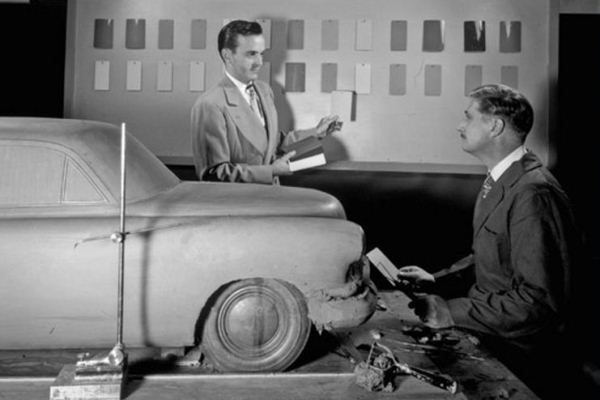

GM Clay model

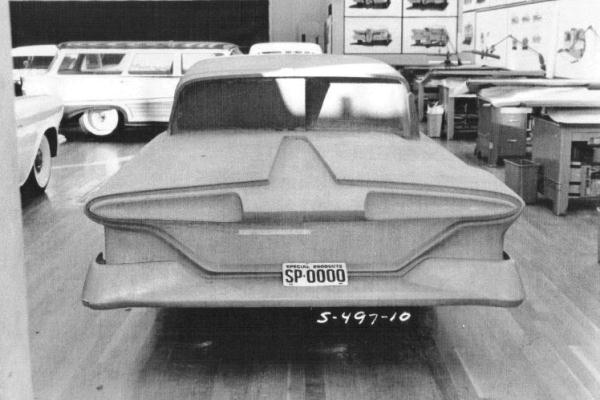

1959 Edsel clay proposal rear

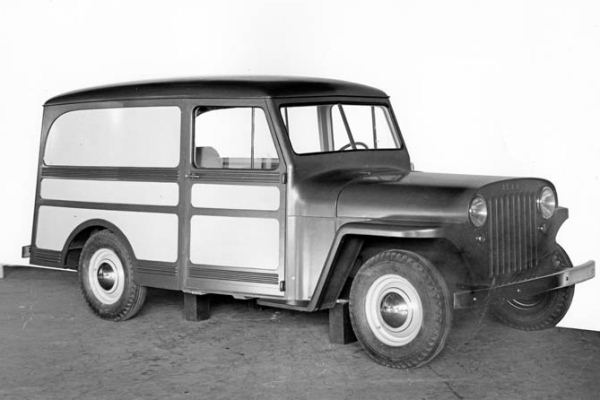

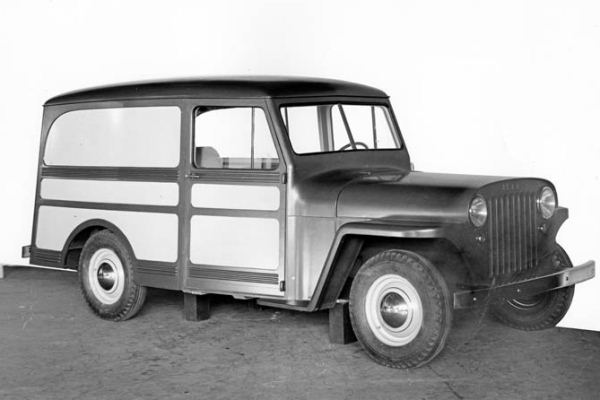

1945 Willys Station Wagon proposal

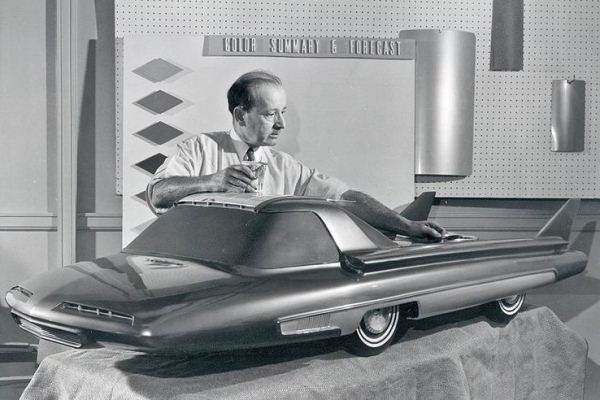

1957 Ford Nucleon in studio

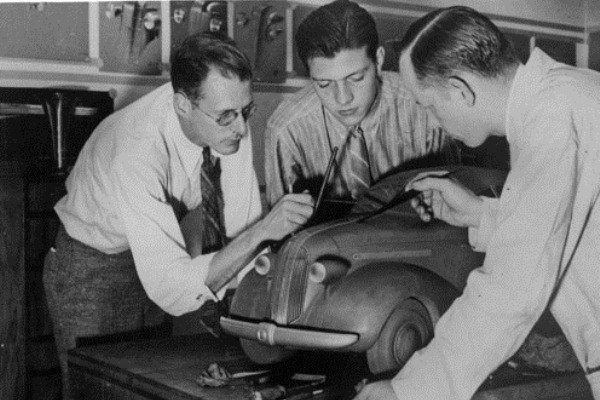

Pontiac clay scale model circa 1936

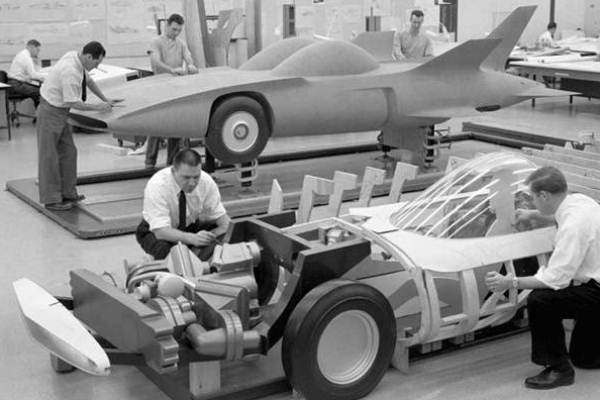

1958 GM Firebird III wood mockup and clay model

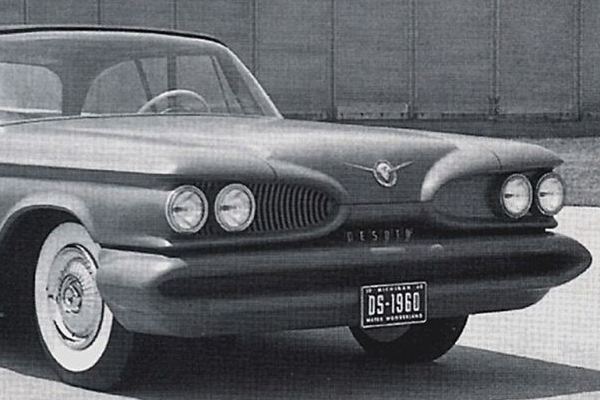

1960 Desoto clay proposal c1957

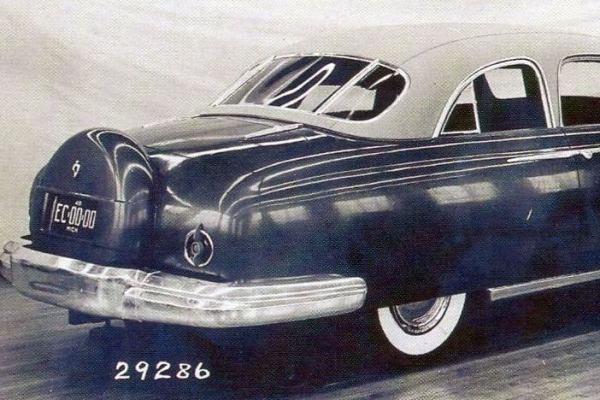

1949 Lincoln clay proposal

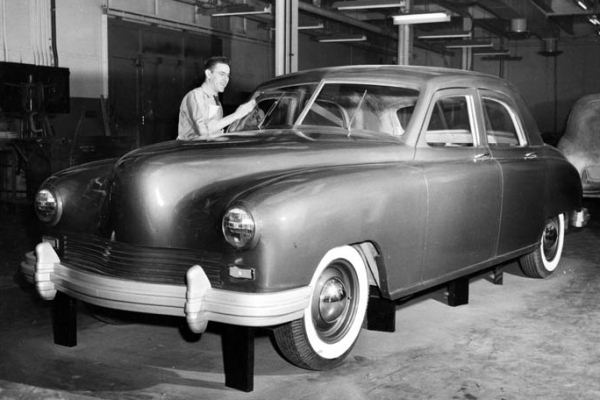

1946 Kaiser fullscale mockup

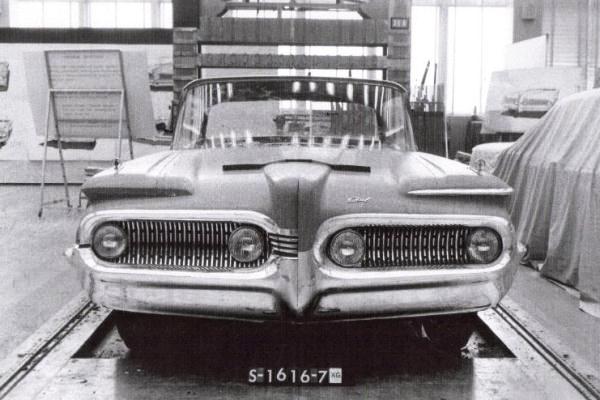

1960 Edsel clay proposal

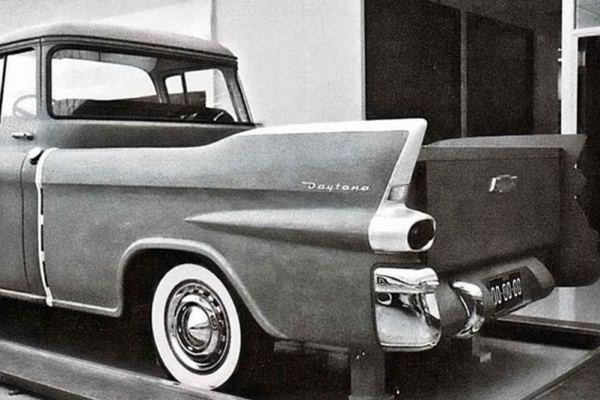

Chevrolet Daytona Pickup clay proposal
Ford Cougar mirrored clay model

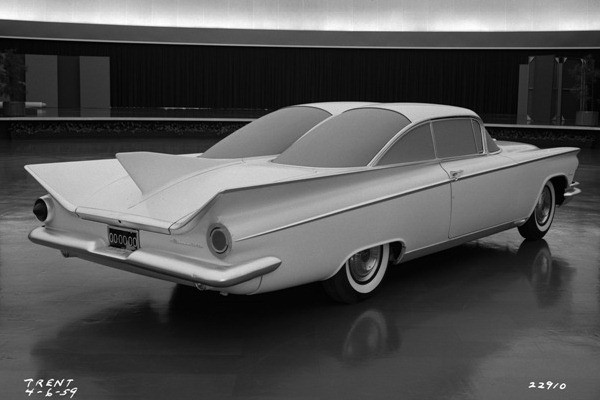

1959 Buick clay proposal
